MILCO Wire EDM's diverse capabilities include Wire EDM, Sinker EDM, Small Hole EDM, Waterjet Cutting and CNC Machining, in Orange County, Southern California Sinker EDM capabilities Small hole EDM capabilities CNC machining capabilities Wire EDM capabilities Waterjet cutting capabilities Full size image

Mouse over capability types for description and corresponding page link


Precise, Reliable, Consistent, Affordable EDM Services


MILCO Wire EDM, an AS9100 Certified EDM services provider, offers top quality electrical discharge machining services and has been the industry leader since 1990. With capabilities of Wire EDM, Small Hole EDM Drilling, Conventional / Sinker EDM and Water-jet services. Catering to all aspects of manufacturing industries, including: Medical, Surgical, Aerospace, Missile, Defense, Aeronautical, Satellite, Tool and Die, Stamping, & Commercial. MILCO Wire EDM has been far exceeding customers' and clients' standards, we hold a reputation of the fastest turnaround and highly competitive pricing. We here at MILCO have a highly trained and skillfully dedicated staff, who strive to make every effort possible to surpass and exceed our customers' expectations. Call us today for a free estimate and quotation. Send us an email or fax us your prints, drawings, files or questions so we can help your ideas or products come to life!

High Quality EDM Cutting & Prototyping

Achieving high accuracy and tighter tolerances is essential for many industries such as aerospace, medical, injection molding and tool and die. With Electrical Discharge Machining we can produce and repeat the required specifications with ease. Contact MILCO Wire EDM for all of your electrical discharge machining needs including, EDM drilling machines, Small Hole drilling machines, Sinker machines and Wire electrical discharge machining.

Electrical Discharge Machining (EDM) Process Explained

Wire EDM, Sinker EDM and Small Hole EDM are the three fundamental pillars of EDM Machining. Each one is a unique process, utilizing a different type of machine, each with a different way in which the electrode and workpiece are engaged to produce a final result.

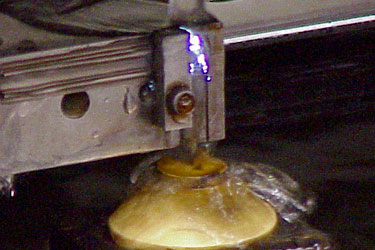

The Wire EDM method is the most widely used in volume and is commonly utilized to manufacture and produce numerous components for aerospace, medical and manufacturing industries. This includes but is not limited to; tool & die components, punches, tooling, splines, extrusion dies, air foils, turbine blade components, internal and external gears, keyways, slots, medical devices, instruments, and prototypes that are intricate in design with incredible tolerances held.

Electrical conductivity is the unifying requirement with all of these components. The material of the workpiece must be electrically conductive for the electrical discharge machining process to work. If not conductive, complications will arise to varying degrees from poor cycle times to incapability of production. Machining with optimal conditions will greatly increase the productivity and efficiency of the overall process, thus keeping part costs to a minimum, and repeatable conditions at a consistent rate.

A superior level of accuracy, tightened tolerances and an increased surface finish can be achieved through EDM that conventional machining methods cannot normally ascertain. Intricate details and a small kerf are also unique to EDM as small diameter wire can be used, that which would not be possible in traditional machining methods. This is due to the fact that the Wire EDM cutting process exerts no cutting force or tooling pressure onto the part. There is no residual stress caused and little changes in the mechanical and thermal properties of the target material are imposed.

Milco Postcard Download

CLICK TO DOWNLOAD A PDF VERSION

Milco Capability Summary

CLICK HERE TO DOWNLOAD A PDF VERSION

AS9100:D since 2010
Nadcap since 2011 (Gold Merit)
SBA Small Business Certified
SDVOSB – Service-Disabled Veteran Owned
US Small Business Chamber of Commerce
SAM - System for Award Management
DPAS / ITAR Compliant

AEROSPACE
DEFENSE
ENERGY
TOOL AND DIE
MEDICAL
SIGNAGE

Year Est. 1990
Corporate Entity
30,000 sq.ft Facility
Climate Controlled

CAGE CODE: 1XBS7
NAICS: 332710
DUNS: 627208804
NIST SP 800-171 DoD
SIC CODE: 3599

Non-conventional machining is vital to many companies and businesses throughout the United States, providing quality services to support a wide variety of industries.

  • Capable of cutting most ferrous and non-ferrous materials
  • Machine annealed or heat-treated material
  • Tolerances of +/-.0002” achieved routinely with Wire EDM
  • Utilizing wire diameters .004”, .006”, .008”, .010” and .012” (Norm is .010”)
  • Accurate tapers of up to 30 degrees, depending on material thickness
  • High velocity waterjet 30,000–60,000 psi
  • Abrasive cutting using garnet
  • Produces no heat damage to workpiece surface or edges.
  • Produces a taper of less than 1 degree with dynamic head

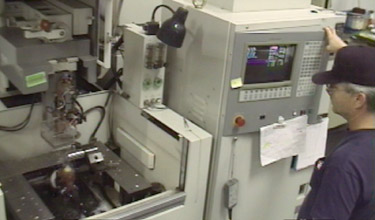

WIRE EDM

NA1200 15.74” x 11.80” Z=8.66
FA 13.7” x 19.68 Z=11.81
(2) FX 9.84“ x 13.77” Z=8.66
110 11.81” x 17.71” Z- 10.5” (14.0” Special)
MV1200 15.74” x 11.80” Z=8.66
MV2400 23.6” x 15.74” Z=16.5

SMALL HOLE EDM

CT500F 13.8” x 19.0” Z=12.0”
SD35Y 13.4” x 9.85” Z=16.0”
SD22P50 12.0” x 8.0” Z=15.0”

SINKER EDM

EX8 11.80” x 9.90” Z=8.80”
(2) EX22 19.7” x 15.70” Z=14

WATERJET

2)  Omax machines 55” x 100” Z = 6.5’
(1) Omax machine 55” x 100” Z = 7’ with taper control head
2 ton crane for loading and unloading
Forklift on site

PAST PERFORMANCES

Wire EDM inside and outside periphery leaving .008” wall in 4 places (aerospace)

Sinker EDM .383” square with 4 corner radii .015” x .3” deep (robotics)

Small Hole EDM .012 dia thru hole in Nitralloy using a frozen process

Waterjet 32,000 pcs Flat Pattern left in skeleton (weapons co)

Waterjet 3,200 pcs coupons (aerospace)


MACHINABLE METALS

Metals of all Alloys, Brass, Copper, Tool Steel, Aluminum, Titanium, Rubber, Stone, Ceramic, Plastics, Glass
And many more…..

For health and safety reasons we will not accept any carcinogenic materials

QUALITY INSPECTION INFO

  • Vision Measuring Machine (VMM)
  • Comparator
  • Tool Makers Microscope
  • Precision Gauge Blocks
  • Hand held calipers, micrometers and indicators

Preventative maintenance and calibration on all machines.

100% inspection on incoming materials and parts.

First piece, during production inspection and 100% inspection upon completion of all jobs
